PH150A280-28 Datasheet, Converters, TDK-Lambda

PH150A280-28 Features

• Converters
• 200 - 425VDC Input
• Base-plate Cooled
• Full Power at 100°C base plate
• Quarter and Half Brick (300W) Footprint
• EN62477-1 (OVC III, PH300A

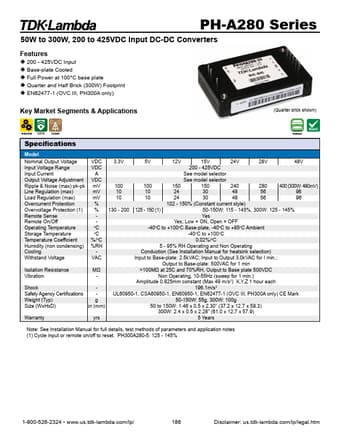

PDF File Details

Part number:

PH150A280-28

Manufacturer:

TDK-Lambda

File Size:

646.56kb

Download:

📄 Datasheet

Description:

Dc-dc converters. PH50A to 150A 25mm transverse fins PH300A 25mm transverse fins PH300A 38mm transverse fins PH300A 38mm longitudinal fins 1-800-526-2324

PH150A280-28 Application

• Applications (Quarter brick shown) Specifications Model Nominal Output Voltage VDC 3.3V 5V 12V 15V 24V 28V 48V Input Voltage Range VDC 200
