DPX205850DT-4032A1 Multilayer Diplexer

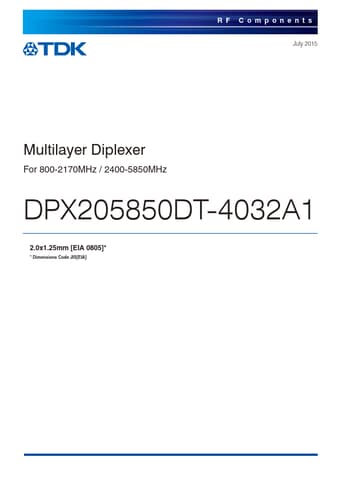

RF Components July 2015 Multilayer Diplexer For 800-2170MHz / 2400-5850MHz DPX205850DT-4032A1 2.0x1.25mm [EIA 0805] Dimensions Code JIS[EIA] RF Components Multilayer Diplexer For 800-2170MHz / 2400-5850MHz DPX205850DT-4032A1 SHAPES AND DIMENSIONS [Top view] 2.00±0.15 (6) (5) (4) 0.95±0.10 1.25±0.15 (1) (2) (3) Marking Conformity to RoHS Directive [Bottom view] 0.65±0.20 0.30±0.20 0.20±0.20 0.35±0.20 Terminal functions 1 GND 2 Common 3 GND 4 High-band 5 GND 6 Low-band Dim.

DPX205850DT-4032A1 Datasheet (79.24 KB)
