DPX205850DT-4055A1 - Multilayer Diplexer

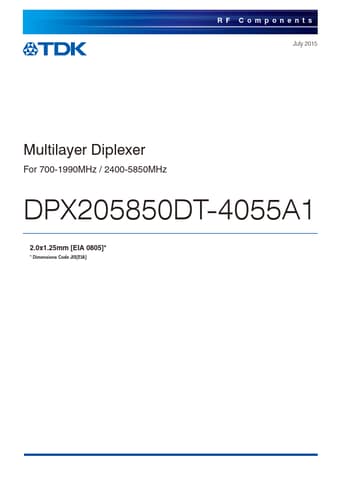

RF Components July 2015 Multilayer Diplexer For 700-1990MHz / 2400-5850MHz DPX205850DT-4055A1 2.0x1.25mm [EIA 0805] Dimensions Code JIS[EIA] RF Components Multilayer Diplexer For 700-1990MHz / 2400-5850MHz DPX205850DT-4055A1 SHAPES AND DIMENSIONS [Top view] 2.00±0.15 (6) (5) (4) 0.90±0.10 1.25±0.15 (1) (2) (3) Marking Conformity to RoHS Directive [Bottom view] 0.65±0.15 0.30±0.15 0.20±0.15 0.35±0.15 0.20±0.15 Terminal functions 1 GND 2 Common 3 GND 4 High-band 5 GND 6 L.
