DPX205850DT-4043A1 - Multilayer Diplexer

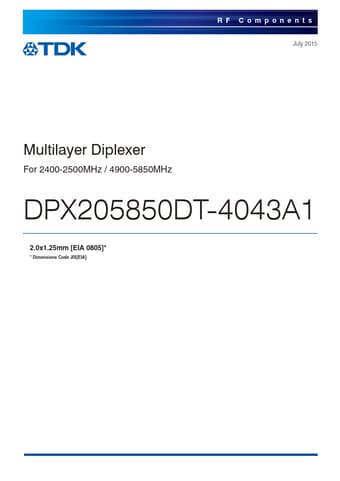

RF Components July 2015 Multilayer Diplexer For 2400-2500MHz / 4900-5850MHz DPX205850DT-4043A1 2.0x1.25mm [EIA 0805] Dimensions Code JIS[EIA] RF Components Multilayer Diplexer For 2400-2500MHz / 4900-5850MHz DPX205850DT-4043A1 SHAPES AND DIMENSIONS [Top view] 2.00±0.15 (1) (2) (3) (8) (4) (7) (6) (5) Marking 1.25±0.15 0.95±0.10 [Bottom view] 0.65±0.20 0.20±0.20 0.35±0.20 0.30±0.20 0.30±0.20 Terminal functions 1 GND 2 Common 3 GND 4 High-band 5 GND 6 GND 7 GND 8 Low-band .

DPX205850DT-4043A1-TDK.pdf

DPX205850DT-4043A1 Datasheet Preview — Preview of DPX205850DT-4043A1 PDF

DPX205850DT-4043A1 Datasheet Preview Page 2

DPX205850DT-4043A1 Datasheet Preview Page 3

Datasheet Details

Part number:

DPX205850DT-4043A1

Manufacturer:

TDK

File Size:

76.32 KB

Description:

Multilayer diplexer.
