MT800 - Thyristor Modules

TECHSEM

MT800 Description

MTC800 MTA800 MTK800 MTX800 MT800 Thyristor Modules .

MT800 Features

* Isolated mounting base 2500V~
* Pressure contact technology with Incrtased power cycling capability

MT800 Applications

* AC/DC Motor drives
* Various rectifiers
* DC supply for PWM inverter IT(AV) VDRM/VRRM ITSM I2t 800A 600~1800V 22 KA 2420 103A2S SYMBOL CHARACTERISTIC TEST CONDITIONS IT(AV) IT(RMS) VDRM VRRM IDRM IRRM ITSM I2t VTO rT VTM dv/dt di/dt IGT VGT IH VGD Rth(j-c) Rth(c-h) Viso Fm Tstg

📥 Download Datasheet

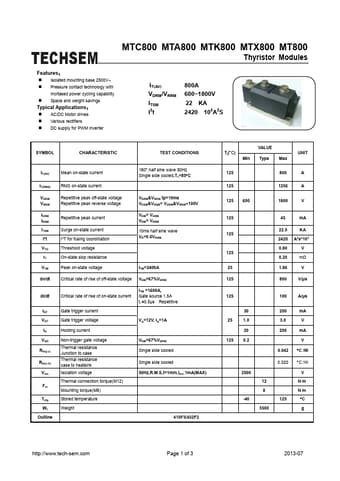

MT800 Datasheet Preview — Preview of MT800 PDF

Datasheet Details

Part number: MT800
Manufacturer: TECHSEM
File Size: 180.12 KB
Datasheet: MT800-TECHSEM.pdf
Description: Thyristor Modules
