MT8006B, MT8006A - High and Low Side Driver

📥 Download Datasheet

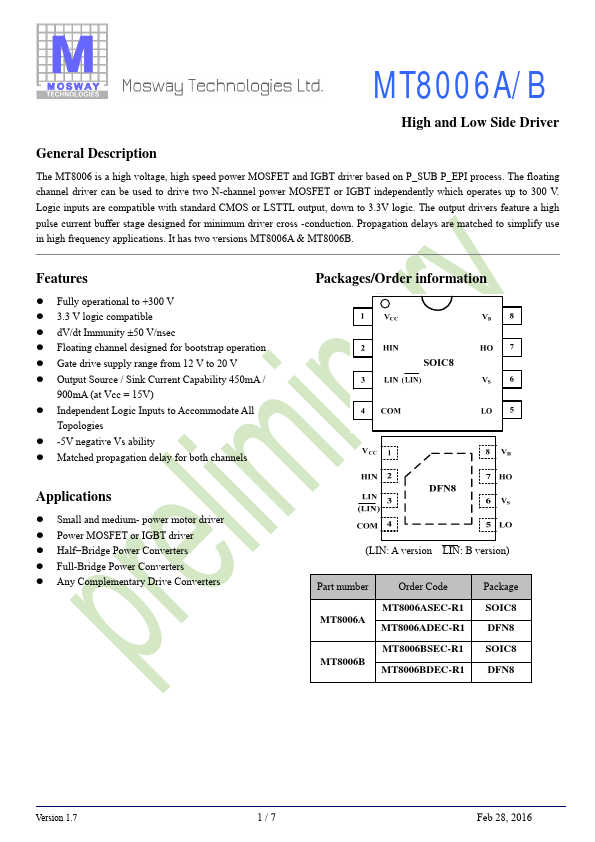

MT8006B Datasheet Preview — This datasheet PDF includes multiple part numbers: MT8006B, MT8006A. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

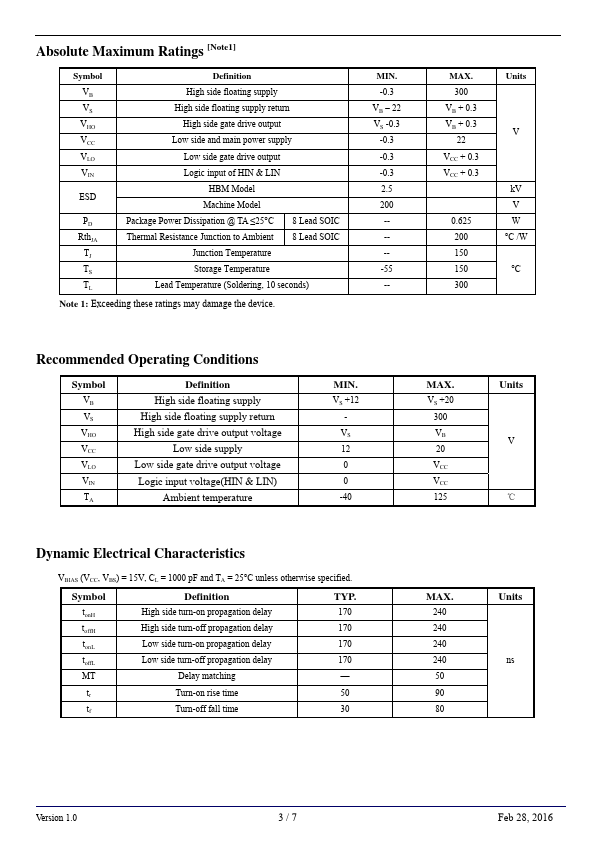

datasheet Preview Page 3

Datasheet Details

Part number	MT8006B, MT8006A
Manufacturer	Mosway
File Size	230.15 KB
Description	High and Low Side Driver
Datasheet	MT8006A-Mosway.pdf
Note	This datasheet PDF includes multiple part numbers: MT8006B, MT8006A. Please refer to the document for exact specifications by model.

MT8006B Product details

Description

The MT8006 is a high voltage, high speed power MOSFET and IGBT driver based on P_SUB P_EPI process.

Features

Fully operational to +300 V.
3.3 V logic compatible.
dV/dt Immunity ±50 V/nsec.
Floating channel designed for bootstrap operation.
Gate drive supply range from 12 V to 20 V.
Output Source / Sink Current Capability 450mA / 900mA (at Vcc = 15V).
Independent Logic Inputs to Accommodate All Topologies.
-5V negative Vs ability.
Matched propagation delay for both channels Packages/Order information.
