MT8006A Datasheet - Mosway

High and Low Side Driver

MT8006A Features

* Fully operational to +300 V

* 3.3 V logic compatible

* dV/dt Immunity ±50 V/nsec

* Floating channel designed for bootstrap operation

* Gate drive supply range from 12 V to 20 V

* Output Source / Sink Current Capability 450mA / 900mA (at Vcc = 15V)

* Independent Logic In

MT8006A General Description

The MT8006 is a high voltage, high speed power MOSFET and IGBT driver based on P_SUB P_EPI process. The floating channel driver can be used to drive two N-channel power MOSFET or IGBT independently which operates up to 300 V. Logic inputs are compatible with standard CMOS or LSTTL output, down to 3..

MT8006A Datasheet (230.15 KB)

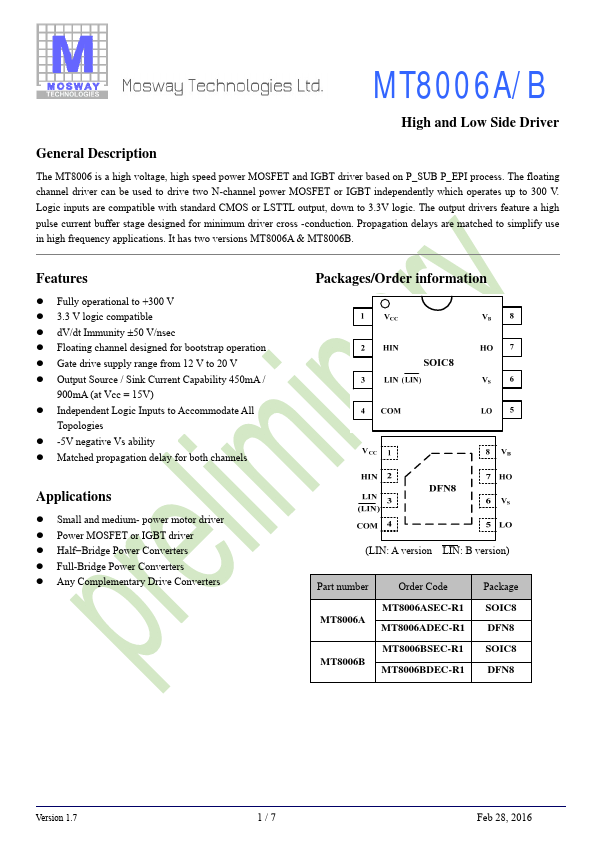

MT8006A Datasheet Preview — Preview of MT8006A PDF

Datasheet Details

Part number:

MT8006A

Manufacturer:

Mosway

File Size:

230.15 KB

Description:

High and low side driver.
