MT8103, P-Channel Enhancement Mode Field Effect Transistor

MT8103 P-Channel Enhancement Mode Field Effect Transistor Product Summary VDS= -30V ID= -13A (VGS= -10V) RDS(ON) = 10m @VGS= -10V.

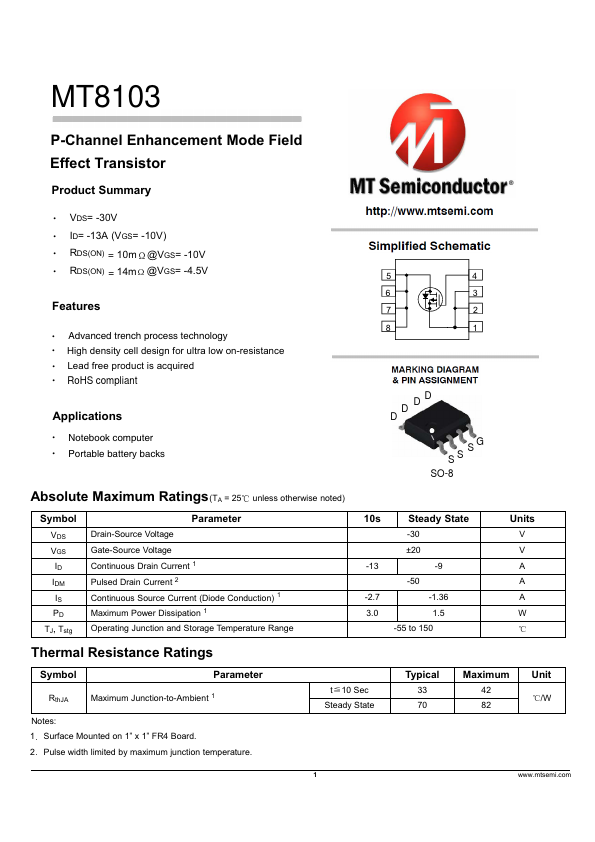

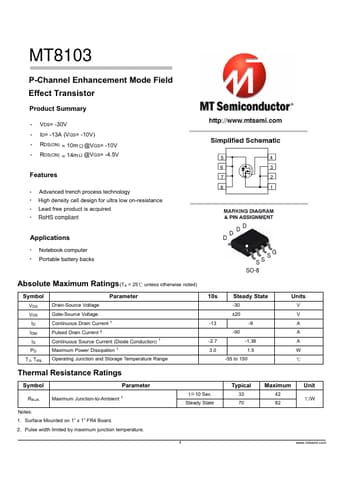

datasheet Preview Page 1 from Datasheet4u.com

MT8103-MTSemiconductor.pdf

MT8103 Datasheet Preview — Preview of MT8103 PDF

Datasheet Details

Part number:

MT8103

Manufacturer:

MT Semiconductor

File Size:

490.57 KB

Description:

P-Channel Enhancement Mode Field Effect Transistor

Applications

* 5 4 6 3 7 2 8 1 DD D D Notebook computer Portable battery backs G SS S SO-8 Absolute Maximum Ratings(TA = 25 unless otherwise noted) Symbol VDS VGS ID IDM IS PD TJ, Tstg Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current 1 Pulsed Drain Current 2 Continuous
