MT82P50N3 Datasheet - MT Semiconductor

MT82P50N3, P-Channel MOSFET

MT82P50N3 3&KDQQHO(QKDQFHPHQW0R GH)LHOG (IIHFW7UDQVLVWRU Product Summary V DS= -20V ID = -50A RDS(ON) = 5.5m @VGS= -10V RDS(.

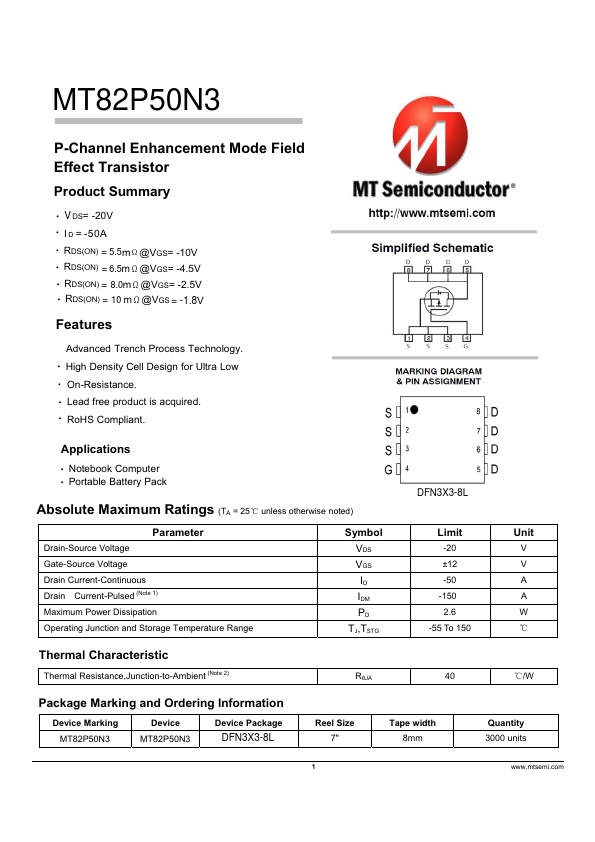

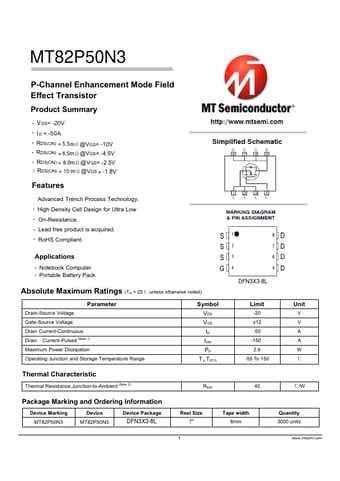

datasheet Preview Page 1 from Datasheet4u.com

MT82P50N3-MTSemiconductor.pdf

MT82P50N3 Datasheet Preview — Preview of MT82P50N3 PDF

Datasheet Details

Part number:

MT82P50N3

Manufacturer:

MT Semiconductor

File Size:

433.85 KB

Description:

P-Channel MOSFET

Features

* Advanced Trench Process Technology. High Density Cell Design for Ultra Low On-Resistance. Lead free product is acquired. RoHS Compliant. $SSOLFDWLRQV Notebook Computer Portable Battery Pack Absolute Maximum Ratings (TA = 25 unless otherwise noted) Parameter Drain-Source Voltage Gate

Applications

* such as the development of weapons of mass destruction or for the purpose of any other military use. When exporting the products or technology described herein, you should follow the applicable export control laws and regulations, and procedures required by such laws and regulations. 4. All informat
