DG419, DG418 Datasheet - TEMICs

DG419 Precision CMOS Analog Switches

The DG417/418/419 monolithic CMOS analog switches were designed to provide high performance switching of analog signals. Combining low power, low leakages, high speed, low on-resistance and small physical size, the DG417 series is ideally suited for portable and battery powered industrial and milit.

DG419 Features

* D "15-V Analog Signal Range D On-Resistance

* rDS(on): 20 W D Fast Switching Action

* tON: 100 ns D Ultra Low Power Requirements

* PD:35 nW D TTL and CMOS Compatible D MiniDIP and SOIC Packaging D 44-V Supply Max Rating Benefits D Wide Dynamic Range D Low Signal Errors and Distort

DG418_TEMICSemiconductors.pdf

This datasheet PDF includes multiple part numbers: DG419, DG418. Please refer to the document for exact specifications by model.

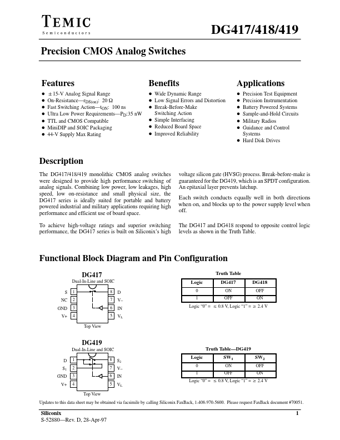

DG419 Datasheet Preview Page 2 DG419 Datasheet Preview Page 3

Datasheet Details

Part number:

DG419, DG418

Manufacturer:

TEMICs

File Size:

153.72 KB

Description:

Precision cmos analog switches.

Note:

This datasheet PDF includes multiple part numbers: DG419, DG418.
Please refer to the document for exact specifications by model.
