CS20N60AND Datasheet, Mosfet, TGW

CS20N60AND Features

  • Mosfet z Fast Switching z Low ON Resistance(Rdson≤0.32Ω) z Low Gate Charge (Typical Data:95nC) z Low Reverse transfer capacitances(Typical:38pF) z 100% Single Pulse avalanche energy Test Ap

PDF File Details

Part number:

CS20N60AND

Manufacturer:

TGW

File Size:

814.69kb

Download:

📄 Datasheet

Description:

Silicon n-channel power mosfet. CS20N60AND, the silicon N-channel Enhanced VDMOSFETs, is obtained by the self-aligned planar Technology which reduce the conduction

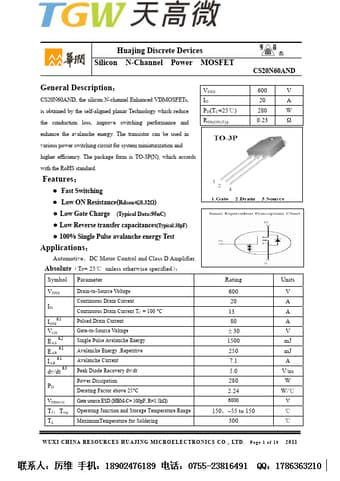

Datasheet Preview: CS20N60AND 📥 Download PDF (814.69kb)
Page 2 of CS20N60AND Page 3 of CS20N60AND

CS20N60AND Application

  • Applications Automotive、 DC Motor Control and Class D Amplifier. Absolute( Tc= 25℃ unless otherwise specified) : Symbol VDSS ID IDM a1 Parameter
