CS20N60A8H Datasheet, Mosfet, Huajing Microelectronics

CS20N60A8H Features

• Mosfet l Fast Switching l Low ON Resistance(Rdson≤0.45Ω) l Low Gate Charge (Typical Data:61nC) l Low Reverse transfer capacitances(Typical: 20pF) l 100% Single Pulse avalanche energy Test App

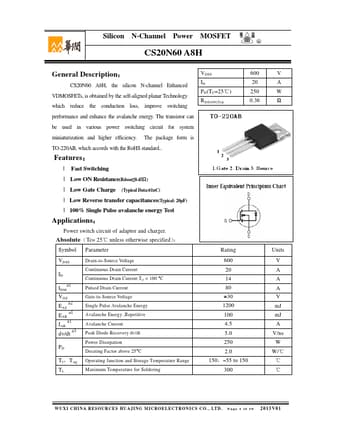

PDF File Details

Part number:

CS20N60A8H

Manufacturer:

Huajing Microelectronics

File Size:

433.95kb

Download:

📄 Datasheet

Description:

Silicon n-channel power mosfet. CS20N60 A8H, the silicon N-channel Enhanced VDMOSFETs, is obtained by the self-aligned planar Technology which reduce the conduction

CS20N60A8H Application

• Applications Power switch circuit of adaptor and charger. Absolute（Tc= 25℃ unless otherwise specified）： Symbol Parameter Rating VDSS ID IDMa1 V
