CS20N65A6, CS20N65A N-Channel Enhancement Mode Power MOSFET

Description

N-Channel Enhancement Mode Power MOSFET CS20N65A MAIN CHARACTERISTICS ID VDSS RDSON-max （@VGS=10V） QG-typ 20A 650V 0.5Ω 58nC CS20N65A1/TO-220AB F.

📥 Download Datasheet

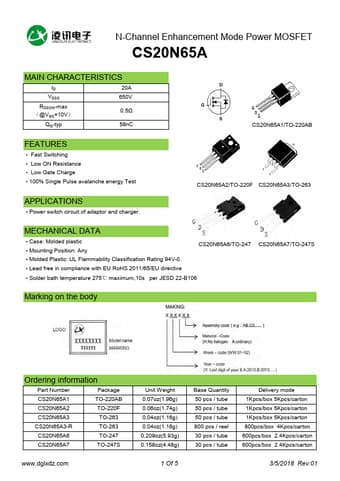

CS20N65A6 Datasheet Preview — This datasheet PDF includes multiple part numbers: CS20N65A6, CS20N65A. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: CS20N65A6, CS20N65A
Manufacturer: LINGXUN
File Size: 439.06 KB
Datasheet: CS20N65A-LINGXUN.pdf
Description: N-Channel Enhancement Mode Power MOSFET
Note: This datasheet PDF includes multiple part numbers: CS20N65A6, CS20N65A.
Please refer to the document for exact specifications by model.

Features

* Fast Switching
* Low ON Resistance
* Low Gate Charge

Applications

* Power switch circuit of adaptor and charger. CS20N65A2/TO-220F CS20N65A3/TO-263 MECHANICAL DATA
* Case: Molded plastic
* Mounting Position: Any CS20N65A6/TO-247
* Molded Plastic: UL Flammability Classification Rating 94V-0
* Lead free in compliance wit
