CS20N65ANH Datasheet, Mosfet, CR Micro

CS20N65ANH Features

• Mosfet l Fast Switching l Low ON Resistance(Rdson≤0.5Ω) l Low Gate Charge (Typical Data:65nC) l Low Reverse transfer capacitances(Typical: 20pF) l 100% Single Pulse avalanche energy Test Appl

PDF File Details

Part number:

CS20N65ANH

Manufacturer:

CR Micro

File Size:

329.98kb

Download:

📄 Datasheet

Description:

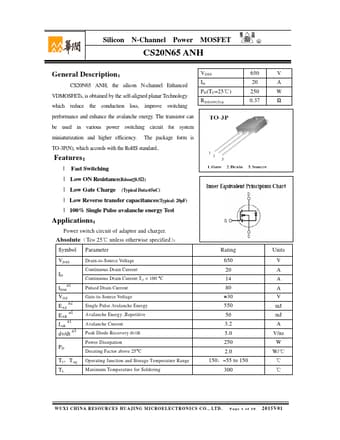

Silicon n-channel power mosfet. VDSS 650 CS20N65 ANH, the silicon N-channel Enhanced ID 20 VDMOSFETs, is obtained by the self-aligned planar Technology PD(TC

CS20N65ANH Application

• Applications Power switch circuit of adaptor and charger. Absolute（Tc= 25℃ unless otherwise specified）： Symbol Parameter Rating VDSS ID IDMa1 V
