CS20N50A8R - Silicon N-Channel Power MOSFET

Product Overview

CR Micro

Datasheet Details

Part number	CS20N50A8R
Manufacturer	CR Micro
File Size	341.84 KB
Description	Silicon N-Channel Power MOSFET
Datasheet	CS20N50A8R Datasheet

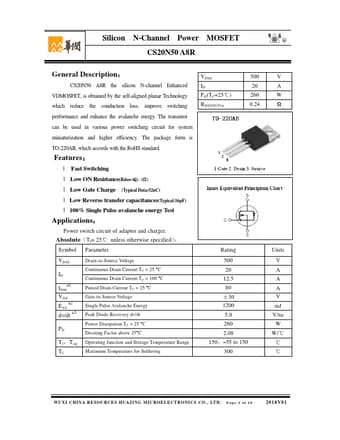

Additional preview pages of the CS20N50A8R datasheet.

Product details

Description

CS20N50 A8R the silicon N-channel Enhanced VDMOSFET, is obtained by the self-aligned planar Technology which reduce the conduction loss, improve switching performance and enhance the avalanche energy.The transistor can be used in various power switching circuit for system miniaturization and higher efficiency.The package form is TO-220AB, which accords with the RoHS standard.

Features

l Fast Switching l Low ON Resistance(Rdson≤0.3Ω) l Low Gate Charge (Typical Data:52nC) l Low Reverse transfer capacitances(Typical:16pF) l 100% Single Pulse avalanche energy Test.
