CS20N50FA9R - Silicon N-Channel Power MOSFET

Product Overview

CR Micro

Datasheet Details

Part number	CS20N50FA9R
Manufacturer	CR Micro
File Size	480.94 KB
Description	Silicon N-Channel Power MOSFET
Datasheet	CS20N50FA9R Datasheet

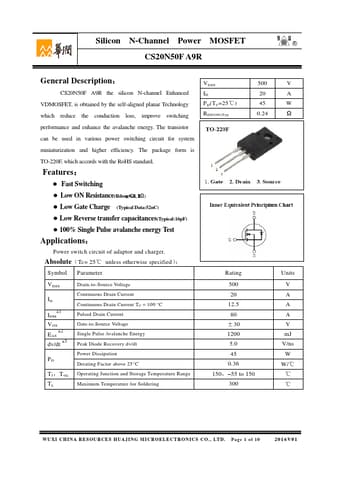

Additional preview pages of the CS20N50FA9R datasheet.

Product details

Description

CS20N50F A9R the silicon N-channel Enhanced VDMOSFET, is obtained by the self-aligned planar Technology which reduce the conduction loss, improve switching performance and enhance the avalanche energy.The transistor can be used in various power switching circuit for system miniaturization and higher efficiency.The package form is TO-220F, which accords with the RoHS standard.

Features

Fast Switching.
Low ON Resistance(Rdson≤0.3Ω).
Low Gate Charge (Typical Data:52nC).
Low Reverse transfer capacitances(Typical:16pF).
100% Single Pulse avalanche energy Test.
