CS20N50ANH Datasheet, Mosfet, Huajing Discrete Devices

CS20N50ANH Features

  • Mosfet l Fast Switching l Low ON Resistance(Rdson≤0.3Ω) l Low Gate Charge (Typical Data:63nC) l Low Reverse transfer capacitances(Typical:25pF) l 100% Single Pulse avalanche energy Test App

PDF File Details

Part number:

CS20N50ANH

Manufacturer:

Huajing Discrete Devices

File Size:

247.18kb

Download:

📄 Datasheet

Description:

Silicon n-channel power mosfet. VDSS 500 CS20N50 ANH, the silicon N-channel Enhanced ID 20 VDMOSFETs, is obtained by the self-aligned planar Technology PD (TC=

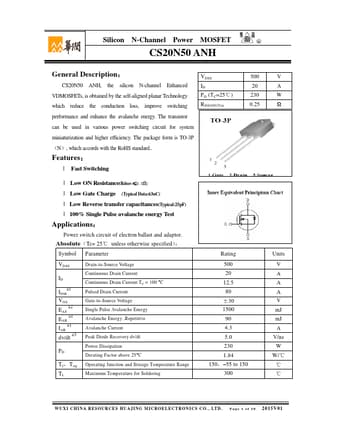

Datasheet Preview: CS20N50ANH 📥 Download PDF (247.18kb)
Page 2 of CS20N50ANH Page 3 of CS20N50ANH

CS20N50ANH Application

  • Applications Power switch circuit of electron ballast and adaptor. Absolute(Tc= 25℃ unless otherwise specified): Symbol Parameter VDSS ID IDMa1
