BD20A05 100 Base-T DUAL Port Transformer

10/100 Base-T DUAL port transformer Module Designed to meet IEEE802.3 & ANSI X3.263 requirement Designed to meet IR 2550C peak requirement RoHS Compliant Some parts are POE enable Standard and Extended Operate Temperature Part Number BD20A01 BD20A02 BD20A04 BD20A05 BD20A07 BD20A08 BD20B12 BD20B13 BD20B14 BD20B16 BD26A01 OCL（uH Min） InsertionLoss Retum Loss Coss talk CMMRR 100KHz,0.2V With 8mA DC Bias Turns Ratios (±3%) (dB Max) 0.5-100MHz (dB MAX) (Bd min) (Bd Min) 0.5-30 MHz 30.1.

BD20A04-TNK.pdf

This datasheet PDF includes multiple part numbers: BD20A05, BD20A04. Please refer to the document for exact specifications by model.

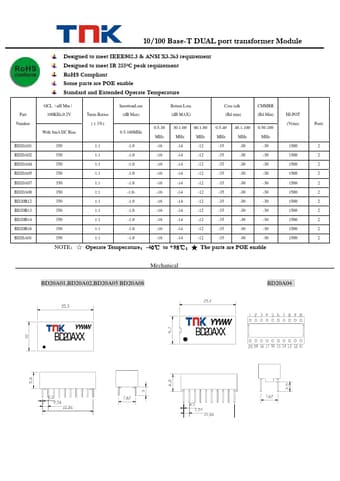

BD20A05 Datasheet Preview Page 2 BD20A05 Datasheet Preview Page 3
