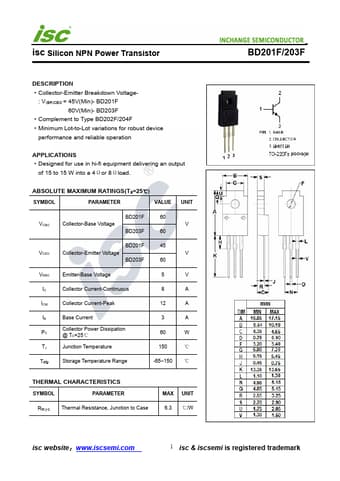

Part number: BD203F
Manufacturer: INCHANGE
File Size: 209.47KB
Download: 📄 Datasheet
Description: NPN Transistor
*Designed for use in hi-fi equipment delivering an output
of 15 to 15 W into a 4Ωor 8Ωload.
ABSOLUTE MAXIMUM RATING.
*Collector-Emitter Breakdown Voltage-
: V(BR)CEO = 45V(Min)- BD201F 60V(Min)- BD203F
*Complement to Type BD202F/204F
*Minimum Lot-to-Lot variations for robust device
performance and reliable operation
APPLICATIONS
*Designed for use i.
