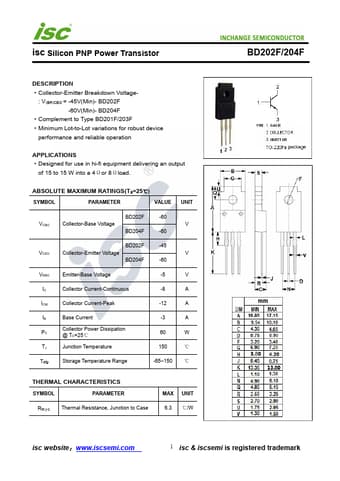

Part number: BD204F
Manufacturer: INCHANGE
File Size: 209.87KB
Download: 📄 Datasheet
Description: PNP Transistor
*Designed for use in hi-fi equipment delivering an output
of 15 to 15 W into a 4Ωor 8Ωload.
ABSOLUTE MAXIMUM RATING.
*Collector-Emitter Breakdown Voltage-
: V(BR)CEO = -45V(Min)- BD202F -60V(Min)- BD204F
*Complement to Type BD201F/203F
*Minimum Lot-to-Lot variations for robust device
performance and reliable operation
APPLICATIONS
*Designed for use.
Image gallery
