TK11233B

VOLTAGE REGULATOR

TK11233B Features

* s High Voltage Precision at ± 2.0% s Active High On/Off Control s Very Low Dropout Voltage 80 mV at 30 mA s Very Low Noise s Very Small SOT-23L or SOT-89-5 Surface Mount Packages s Internal Thermal Shutdown s Short Circuit Protection DESCRIPTION The TK112xxB is a low dropout linear regulator with a

TK11233B General Description

The TK112xxB is a low dropout linear regulator with a builtin electronic switch. The internal switch can be controlled by TTL or CMOS logic levels. The device is in the ON state when the control pin is pulled to a logic high level. An external capacitor can be connected to the noise bypass pin to lo.

TK11233B Datasheet (187.70 KB)

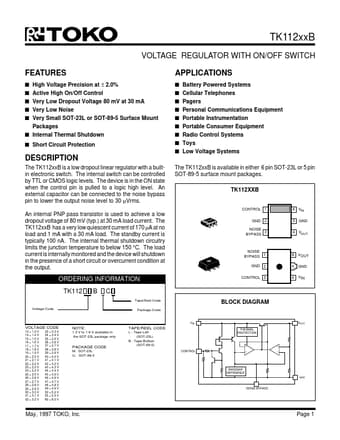

Preview of TK11233B PDF

Datasheet Details

Part number:

TK11233B

Manufacturer:

TOKO

File Size:

187.70 KB

Description:

Voltage regulator.
