TK70003 Datasheet - TOKO

TK70003 SINGLE OUTPUT/ TWO INPUT SOLID STATE SWITCH

The TK70003 is a monolithic bipolar integrated circuit with high side current switches of low saturation type. The supply current, including the control current, is virtually zero (pA level) when the control pin is “off.” The impedance on the output side is high and the reverse current does not flow.

TK70003 Features

* s s s s s s s Internal PNP Power Transistor Reverse Bias Voltage Protection Very Low Input-Output Voltage Difference Very Low Standby Current Overtemperature Protection Single Output with Two Controlled Inputs Active High On/Off Control APPLICATIONS s s s s s s Battery Powered Systems Radio Control

TK70003_TOKOInc.pdf

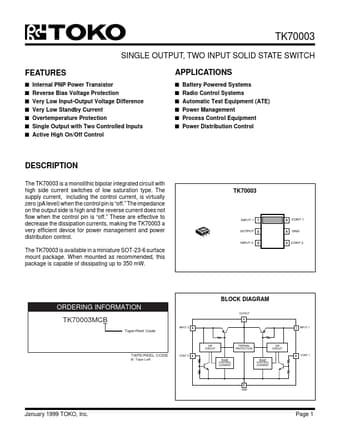

Preview of TK70003 PDF
TK70003 Datasheet Preview Page 2 TK70003 Datasheet Preview Page 3

Datasheet Details

Part number:

TK70003

Manufacturer:

TOKO

File Size:

56.71 KB

Description:

Single output/ two input solid state switch.
