TMI8037 - 500mA LNB-Power Supply & Control Voltage Regulator

Datasheet Summary

Description

Intended for analog and digital satellite receivers/sat-TV, sat-OC cards, the TMI8037 is a monolithic voltage regulator and interface IC, packaged in ESOP8, specifically designed to provide the 14V/19V power supply with high efficiency and the 22kHz TONE signaling to the LNB downconverter in the ant

Features

  • High Efficiency: Up to 90%.
  • Low noise output to avoid sensitivity of Can Tuner and DISH’s LNA dropping down.
  • Noise 40mV@20MHz BWL.
  • Single chip solution on 650mVpp.
  • 22kHz TONE with 10µs Trise/Tfall for less Transferring noise.
  • LNB Voltages (2 levels: 14V and 19V) compatible with common standards, Push-pull output stage minimizes 14V → 19V and 19V → 14V output transition times.
  • External 22kHz TONE input.
  • Integrated DC/DC BOOST converter and high efficiency.

📥 Download Datasheet

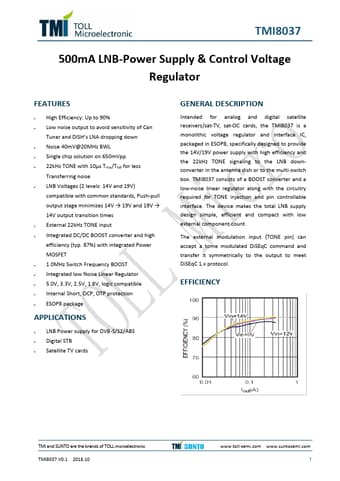

Datasheet preview – TMI8037

Datasheet Details

Part number TMI8037
Manufacturer TOLL Microelectronic
File Size 692.10 KB
Description 500mA LNB-Power Supply & Control Voltage Regulator
Datasheet download datasheet TMI8037 Datasheet
Additional preview pages of the TMI8037 datasheet.

📁 Similar Datasheet

  • TMI8150B - 5V 5-Channel Micro STM&DCMotor Driver (TOLL)
  • TMI3108 - 1.5MHz 1A Synchronous Step-DownConverter (TOLL)
  • TMI31602H - 2A Synchronous Step-Down Converter (TOLL)
  • TMI3252 - 600kHz 18V 2A Synchronous COT Step-Down Converter (TOLL)
  • TMI3252S - 600kHz 18V 2A Synchronous COT Step-Down Converter (TOLL)
  • TMI3252SH - 1MHz 18V 2A Synchronous COT Step-Down Converter (TOLL)
  • TMI3252T - 600kHz 18V 2A Synchronous COT Step-Down Converter (TOLL)
  • TMI3255S - 5A Synchronous COT Step-Down Converter (TOLL)
  • TMI3281 - 18V 2A Synchronous Step-Down Converter (TOLL)
  • TMI3351 - Wide Input Range Buck Converter (TOLL)
Other Datasheets by TOLL Microelectronic
  • TMI8122-Q1 - 1CH H-bridge Motor Driver
  • TMI8262 - Dual-Bridge Motor Controller
  • TMI8262Q - Dual-Bridge Motor Controller
  • TMI8721-Q1 - Automotive Single-Channel Smart Gate Driver
  • TMI8870 - 3.6-A Brushed DC Motor Driver
  • TMI8870B - 3.6-A Brushed DC Motor Driver

Full PDF Text Transcription

Click to expand full text
TMI8037 500mA LNB-Power Supply & Control Voltage Regulator FEATURES ⚫ High Efficiency: Up to 90% ⚫ Low noise output to avoid sensitivity of Can Tuner and DISH’s LNA dropping down ⚫ Noise 40mV@20MHz BWL ⚫ Single chip solution on 650mVpp ⚫ 22kHz TONE with 10µs Trise/Tfall for less Transferring noise ⚫ LNB Voltages (2 levels: 14V and 19V) compatible with common standards, Push-pull output stage minimizes 14V → 19V and 19V → 14V output transition times ⚫ External 22kHz TONE input ⚫ Integrated DC/DC BOOST converter and high efficiency (typ. 87%) with integrated Power MOSFET ⚫ 1.0MHz Switch Frequency BOOST ⚫ Integrated low Noise Linear Regulator ⚫ 5.0V, 3.3V, 2.5V, 1.
