TMI8870 - 3.6-A Brushed DC Motor Driver

Datasheet Summary

Description

The TMI8870/B device are the brushed-DC motor drivers for printers, appliances, industrial equipment, and other small machines.

Two logic inputs control the H-bridge driver, which consists of four N-channel MOSFETs that can control motors bidirectionally with up to 3.6-A peak current.

Features

  • H-Bridge Motor Driver Drives One DC Motor, One Winding of a Stepper Motor, or Other Loads.
  • Wide 6.8V to 45V Operating Voltage.
  • 3.6-A Peak Current Drive.
  • PWM Control Interface.
  • Integrated Current Regulation.
  • Low-Power Sleep Mode.
  • VM Undervoltage Lockout (UVLO).
  • Overcurrent Protection (OCP) - Retry after OCP: TMI8870 - Latch after OCP: TMI8870B.
  • Thermal Shutdown (TSD).
  • Automatic Fault Recovery.
  • ESOP8 Small Package and Footprint.

📥 Download Datasheet

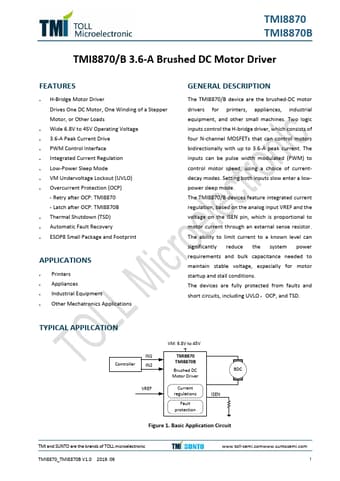

Datasheet preview – TMI8870

Datasheet Details

Part number TMI8870
Manufacturer TOLL Microelectronic
File Size 639.18 KB
Description 3.6-A Brushed DC Motor Driver
Datasheet download datasheet TMI8870 Datasheet
Additional preview pages of the TMI8870 datasheet.

📁 Similar Datasheet

  • TMI8150B - 5V 5-Channel Micro STM&DCMotor Driver (TOLL)
  • TMI3108 - 1.5MHz 1A Synchronous Step-DownConverter (TOLL)
  • TMI31602H - 2A Synchronous Step-Down Converter (TOLL)
  • TMI3252 - 600kHz 18V 2A Synchronous COT Step-Down Converter (TOLL)
  • TMI3252S - 600kHz 18V 2A Synchronous COT Step-Down Converter (TOLL)
  • TMI3252SH - 1MHz 18V 2A Synchronous COT Step-Down Converter (TOLL)
  • TMI3252T - 600kHz 18V 2A Synchronous COT Step-Down Converter (TOLL)
  • TMI3255S - 5A Synchronous COT Step-Down Converter (TOLL)
  • TMI3281 - 18V 2A Synchronous Step-Down Converter (TOLL)
  • TMI3351 - Wide Input Range Buck Converter (TOLL)
Other Datasheets by TOLL Microelectronic
  • TMI8870B - 3.6-A Brushed DC Motor Driver
  • TMI8037 - 500mA LNB-Power Supply & Control Voltage Regulator
  • TMI8122-Q1 - 1CH H-bridge Motor Driver
  • TMI8262 - Dual-Bridge Motor Controller
  • TMI8262Q - Dual-Bridge Motor Controller
  • TMI8721-Q1 - Automotive Single-Channel Smart Gate Driver

Full PDF Text Transcription

Click to expand full text
TMI8870 TMI8870B TMI8870/B 3.6-A Brushed DC Motor Driver FEATURES ⚫ H-Bridge Motor Driver Drives One DC Motor, One Winding of a Stepper Motor, or Other Loads ⚫ Wide 6.8V to 45V Operating Voltage ⚫ 3.6-A Peak Current Drive ⚫ PWM Control Interface ⚫ Integrated Current Regulation ⚫ Low-Power Sleep Mode ⚫ VM Undervoltage Lockout (UVLO) ⚫ Overcurrent Protection (OCP) - Retry after OCP: TMI8870 - Latch after OCP: TMI8870B ⚫ Thermal Shutdown (TSD) ⚫ Automatic Fault Recovery ⚫ ESOP8 Small Package and Footprint APPLICATIONS ⚫ Printers ⚫ Appliances ⚫ Industrial Equipment ⚫ Other Mechatronics Applications GENERAL DESCRIPTION The TMI8870/B device are the brushed-DC motor drivers for printers, appliances, industrial equipment, and other small machines.
