TP25AU220S15W

25~30W 3KVAC Isolation Wide Input AC/DC Converters

TP25AU220S15W Features

* Universal input voltage range Both for AC and DC input voltage Wide input voltage:2:1 and 4:1 Fixed switching frequency Overheat protection Over current protection Short circuit protection RoHS compliant Operating temperature: -40℃to 70℃ SELECTION GUIDE Part Number TP25AU220S03W RTP25AU220

TP25AU220S15W General Description

25~30W 3KVAC Isolation Wide Input AC/DC Converters The rated output power of TP25AU~TP30AU converters is 25~30W with wide input voltage range, for both AC input and DC input application. High reliability, precision, large power density, ultra-small size, no external heat sink required, stable outpu.

TP25AU220S15W Datasheet (403.63 KB)

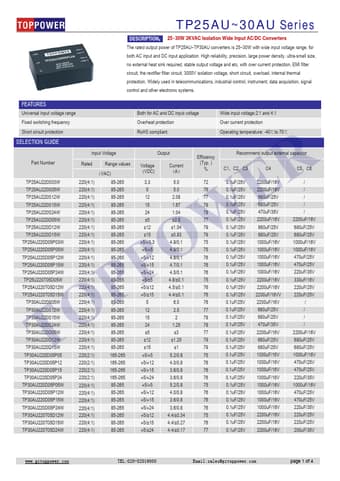

Preview of TP25AU220S15W PDF

Datasheet Details

Part number:

TP25AU220S15W

Manufacturer:

TOPPOWER

File Size:

403.63 KB

Description:

25~30w 3kvac isolation wide input ac/dc converters.
