2SB1322A Plastic-Encapsulated Transistors

2SB1322A Description

Transys Electronics L I M I T E D TO-92 Plastic-Encapsulated Transistors 2SB1322A .

2SB1322A Features

* Power dissipation PCM: 1 W (Tamb=25℃) TRANSISTOR (PNP) TO-92 1. EMITTER 2. COLLECTOR Collector current -1 A ICM: Collector-base voltage -60 V V(BR)CBO: Operating and storage junction temperature range TJ, Tstg: -55℃ to +150℃ 3. BASE 1 2 3 ELECTRICAL CHARACTERISTICS (Tamb=25℃ Parameter Collecto

📥 Download Datasheet

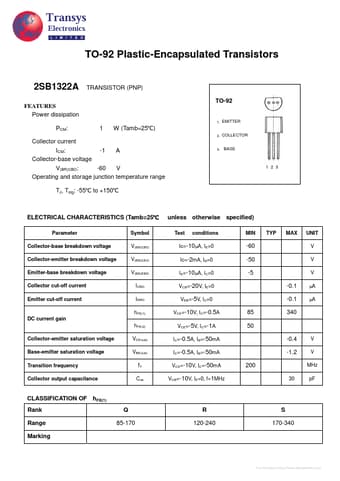

Preview of 2SB1322A PDF

Datasheet Details

Part number
2SB1322A
Manufacturer
TRANSYS
File Size
79.91 KB
Datasheet
2SB1322A_TRANSYS.pdf
Description
Plastic-Encapsulated Transistors
