MBR12045R, MBR12020 Datasheet - TRANSYS

MBR12045R, MBR12020, (MBR12020 - MBR120100R) SCHOTTKY DIODES

Transys Electronics L I M I T E D MBR12020(R) THRU MBR120100(R) SCHOTTKY DIODES MODULE TYPE 120A .

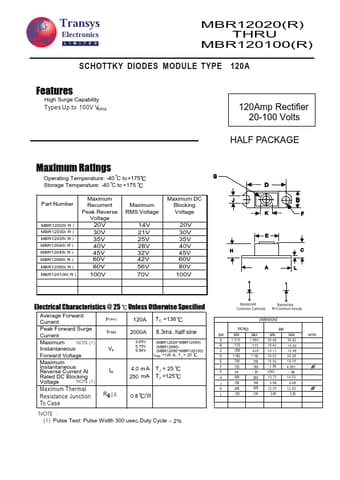

datasheet Preview Page 1 from Datasheet4u.com

MBR12020_TRANSYS.pdf

MBR12045R Datasheet Preview — This datasheet PDF includes multiple part numbers: MBR12045R, MBR12020. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MBR12045R, MBR12020

Manufacturer:

TRANSYS

File Size:

170.33 KB

Description:

(MBR12020 - MBR120100R) SCHOTTKY DIODES

Note:

This datasheet PDF includes multiple part numbers: MBR12045R, MBR12020.
Please refer to the document for exact specifications by model.

Features

* High Surge Capability Types Up to 100V V RRM 120Amp Rectifier 20-100 Volts HALF PACKAGE Maximum Ratings Operating Temperature: -40 C to +175 Storage Temperature: -40 C to +175 Part Number Maximum Recurrent Peak Reverse Voltage 20V 30V 35V 40V 45V 60V 80V 100V Maximum DC Blocking Voltage 20V 30V 3
