TMC5130A-TA

Universal high voltage controller/driver

TMC5130A-TA Features

* 2-phase stepper motors up to 2A coil current (2.5A peak) Voltage Range 4.75… 46V DC Motion Controller with SixPoint™ ramp Step/Dir Interface with microstep interpolation MicroPlyer™ SPI & Single Wire UART Encoder Interface and 2x Ref.-Switch Input Highest Resolution 256 microsteps per full step Stea

TMC5130A-TA General Description

The TMC5130A is a high-performance stepper motor controller and driver IC with serial communication interfaces. It combines a flexible ramp generator for automatic target positioning with industries’ most advanced stepper motor driver. Based on TRINAMICs sophisticated StealthChop chopper, the driver.

TMC5130A-TA Datasheet (2.48 MB)

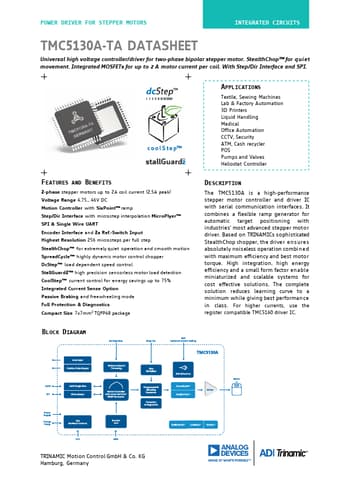

Preview of TMC5130A-TA PDF

Datasheet Details

Part number:

TMC5130A-TA

Manufacturer:

TRINAMIC

File Size:

2.48 MB

Description:

Universal high voltage controller/driver.
POWER DRIVER FOR STEPPER MOTORS INTEGRATED CIRCUITS TMC5130A-TA DATASHEET Universal high voltage controller/driver for two-phase bipolar stepper mot.
