TMC5161A

Low power-dissipation Driver/Controller

TMC5161A Features

* 2-phase stepper motors up to 3.5A RMS coil current Step/Dir Interface with 3D optimized interpolation MicroPlyer™ Motion Controller with SixPoint™ ramp as intelligent peripheral Voltage Range 8 … 40V DC (55V peak) Low RDSon integrated 45mΩ MOSFETs SPI & Single Wire UART Encoder Interface and 2x Ref.

TMC5161A General Description

The TMC5160 / TMC5161A is a compact stepper motor controller and driver IC. Its power stage is optimized for lowest power dissipation and highest dynamics with Nema 17 and Nema 23 motors. It combines a flexible ramp generator for automatic target positioning with industries’ most advanced stepper mo.

TMC5161A Datasheet (2.71 MB)

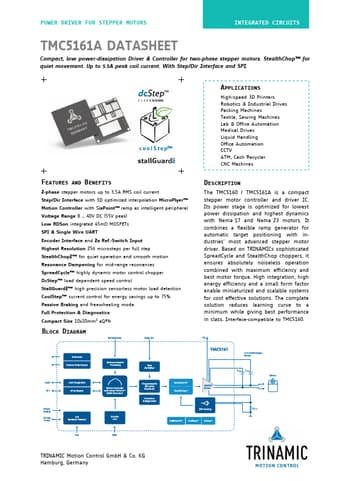

Preview of TMC5161A PDF

Datasheet Details

Part number:

TMC5161A

Manufacturer:

TRINAMIC

File Size:

2.71 MB

Description:

Low power-dissipation driver/controller.
POWER DRIVER FOR STEPPER MOTORS INTEGRATED CIRCUITS TMC5161A DATASHEET Compact, low power-dissipation Driver & Controller for two-phase stepper moto.
