RS-540PH-2962, RS-540SH Datasheet - TRONSUN MOTOR

RS-540PH-2962 Cabron-brush Motors

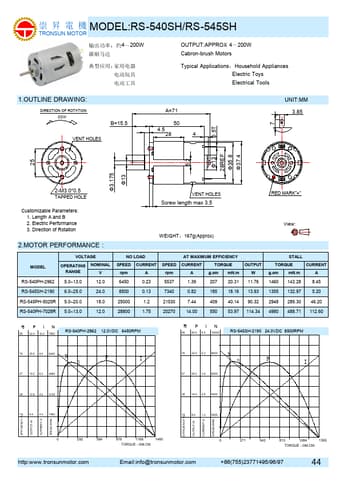

MODEL:RS-540SH/RS-545SH TRONSUN MOTOR ：4～200W OUTPUT:APPROX 4～200W Cabron-brush Motors ： Typical Applications：Household Appliances Electric Toys Electrical Tools 1.OUTLINE DRAWING: DIRECTION OF ROTATION CCW B=15.5 VENT HOLES A=71 50 4.5 28 4 0.5T 7 UNIT:MM 3.85 Φ13 28REF Φ35.8 Φ37.4 5.2 25 Φ3.175 Φ13 2-M3.0 0.5 TAPPED HOLE Customizable Parameters: 1. Length A and B 2. Electric Performance 3. Direction of Rotation 2.MOTOR PERFORMANCE : VENT HOLES Screw length max 3.5 .

RS-540SH-TRONSUNMOTOR.pdf

RS-540PH-2962 Datasheet Preview — This datasheet PDF includes multiple part numbers: RS-540PH-2962, RS-540SH. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

RS-540PH-2962, RS-540SH

Manufacturer:

TRONSUN MOTOR

File Size:

159.53 KB

Description:

Cabron-brush motors.

Note:

This datasheet PDF includes multiple part numbers: RS-540PH-2962, RS-540SH.
Please refer to the document for exact specifications by model.
