OPB830 - Slotted Optical Switch

Datasheet Summary

Description

OPB830 and OPB840 series provide the design engineer with the flexibility of a custom device from a standard product line.

The L Series offers a choice of PCBoard mount lead spacing, while the W Series offers 24” (610mm) 26AWG wire leads.

Features

  • 0.125” (3.18 mm) wide slot.
  • Choice of electrical output parameters.
  • Choice of aperture.
  • Choice of opaque or IR transmissive shell material.
  • Side mount configuration.
  • Choice of lead spacing (L Series).
  • 24” [610 mm] 26 AWG wire leads (W Series) L Package W Package.

📥 Download Datasheet

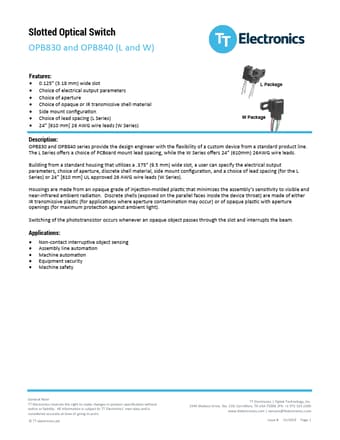

Datasheet preview – OPB830

Datasheet Details

Part number OPB830
Manufacturer TT
File Size 560.46 KB
Description Slotted Optical Switch
Datasheet download datasheet OPB830 Datasheet
Additional preview pages of the OPB830 datasheet.

📁 Similar Datasheet

  • OPB831L - SLOTTED OPTICAL SWITCHES (ETC)
  • OPB832L - SLOTTED OPTICAL SWITCHES (ETC)
  • OPB835L - SLOTTED OPTICAL SWITCHES (ETC)
  • OPB836L - SLOTTED OPTICAL SWITCHES (ETC)
  • OPB837L - SLOTTED OPTICAL SWITCHES (ETC)
  • OPB804 - Slotted Optical Switch (OPTEK)
  • OPB821 - Slotted Optical Switches (OPTEK)
  • OPB821S10 - Slotted Optical Switches (OPTEK)
  • OPB821S3 - Slotted Optical Switches (OPTEK)
  • OPB821S5 - Slotted Optical Switches (OPTEK)
Other Datasheets by TT

Full PDF Text Transcription

Click to expand full text
Slotted Optical Switch OPB830 and OPB840 (L and W) Features: • 0.125” (3.18 mm) wide slot • Choice of electrical output parameters • Choice of aperture • Choice of opaque or IR transmissive shell material • Side mount configuration • Choice of lead spacing (L Series) • 24” [610 mm] 26 AWG wire leads (W Series) L Package W Package Description: OPB830 and OPB840 series provide the design engineer with the flexibility of a custom device from a standard product line. The L Series offers a choice of PCBoard mount lead spacing, while the W Series offers 24” (610mm) 26AWG wire leads. Building from a standard housing that utilizes a .375” (9.
