OPB830L, OPB830 Slotted Optical Switch

OPB830L Description

Slotted Optical Switch OPB830 and OPB840 (L and W) .
OPB830 and OPB840 series provide the design engineer with the flexibility of a custom device from a standard product line.

OPB830L Features

* 0.125” (3.18 mm) wide slot
* Choice of electrical output parameters
* Choice of aperture
* Choice of opaque or IR transmissive shell material
* Side mount configuration
* Choice of lead spacing (L Series)
* 24” [610 mm] 26 AWG wire leads (W

OPB830L Applications

* where aperture contamination may occur) or of opaque plastic with aperture openings (for maximum protection against ambient light). Switching of the phototransistor occurs whenever an opaque object passes through the slot and interrupts the beam. Applications:
* Non-contact interruptive obj

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: OPB830L, OPB830. Please refer to the document for exact specifications by model.

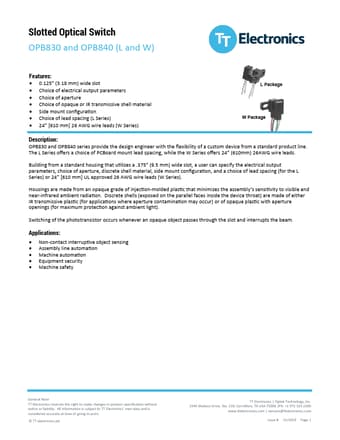

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
OPB830L, OPB830
Manufacturer
TT
File Size
560.46 KB
Datasheet
OPB830-TT.pdf
Description
Slotted Optical Switch
Note
This datasheet PDF includes multiple part numbers: OPB830L, OPB830.
Please refer to the document for exact specifications by model.
