TS7441L Datasheet, Switch, Tagore

TS7441L Features

  • Switch
  • Low insertion loss: 0.40dB @ 800MHz
  • High isolation: 36dB @ 800MHz
  • High linear power handling capability
  • No external DC blocking capacitors on RF

PDF File Details

Part number:

TS7441L

Manufacturer:

Tagore

File Size:

636.46kb

Download:

📄 Datasheet

Description:

30w cw gan broadband rf switch. The TS7441L is a symmetrical reflective Single Pole Four Throws (SP4T) switch designed for broadband, high power switching applicatio

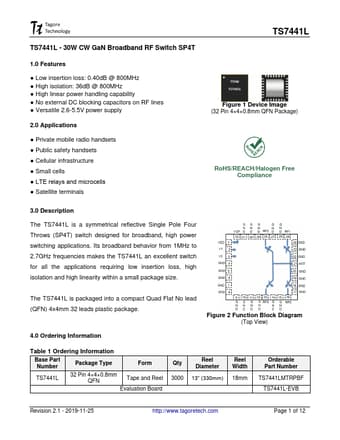

Datasheet Preview: TS7441L 📥 Download PDF (636.46kb)
Page 2 of TS7441L Page 3 of TS7441L

TS7441L Application

  • Applications
  • Private mobile radio handsets
  • Public safety handsets
  • Cellular infrastructure
  • Small cells
  • <
