TS7021N Datasheet, Spdt, Tagore

TS7021N Features

• Spdt
• Low insertion loss: 0.65dB @ 1.9GHz
• High isolation: 37dB @ 1.9GHz
• High linear power handling capability
• No external DC blocking capacitors on RF

PDF File Details

Part number:

TS7021N

Manufacturer:

Tagore

File Size:

448.87kb

Download:

📄 Datasheet

Description:

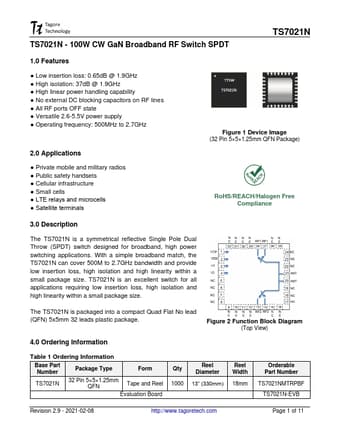

100w cw gan broadband rf switch spdt. The TS7021N is a symmetrical reflective Single Pole Dual Throw (SPDT) switch designed for broadband, high power switching application

TS7021N Application

• Applications
• Private mobile and military radios
• Public safety handsets
• Cellular infrastructure
• Small cells <
