TS72250K Datasheet, Spdt, Tagore

TS72250K Features

  • Spdt
  • Low insertion loss: 0.35dB @ 800MHz
  • High isolation: 45dB @ 800MHz
  • High peak power handling capability
  • No external DC blocking capacitors on RF li

PDF File Details

Part number:

TS72250K

Manufacturer:

Tagore

File Size:

557.08kb

Download:

📄 Datasheet

Description:

Rf switch spdt. The TS72250K is a symmetrical reflective Single Pole Dual Throw (SPDT) switch designed for broadband, high peak power switching appl

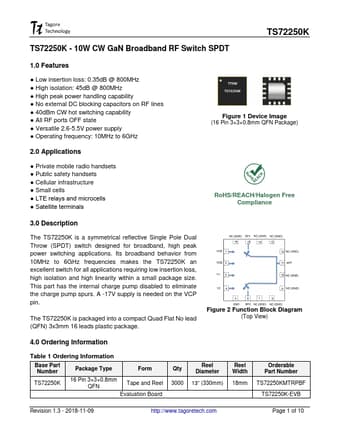

Datasheet Preview: TS72250K 📥 Download PDF (557.08kb)
Page 2 of TS72250K Page 3 of TS72250K

TS72250K Application

  • Applications
  • Private mobile radio handsets
  • Public safety handsets
  • Cellular infrastructure
  • Small cells
  • <

TAGS

TS72250K
Switch
SPDT
Tagore
