TS7224FK 50W Peak Power GaN Broadband RF Switch

The TS7224FK is a symmetrical reflective Single Pole Dual Throw (SPDT) switch designed for broadband, high peak power switching applications. Its broadband behavior from 30MHz to 6GHz frequencies makes the TS7224FK an excellent switch for all applications requiring low insertion loss, high isolation.

TS7224FK Features

* Low insertion loss: 0.35dB @ 800MHz

* High isolation: 45dB @ 800MHz

* High peak power handling capability

* No external DC blocking capacitors on RF lines

* 40dBm CW hot switching capability

* All RF ports OFF state

* Versatile 2.6-5.5V power supply

* Operating freq

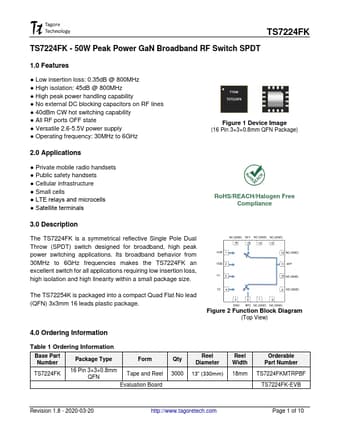

TS7224FK-Tagore.pdf
