TS7246K - 10W CW GaN Broadband RF Switch SP4T

TS7246K Description

TS7246K TS7246K - 10W CW GaN Broadband RF Switch SP4T 1.0 .
The TS7246K is a symmetrical reflective Single Pole Four Throws (SP4T) switch designed for broadband, high power switching applications.

TS7246K Features

* Low insertion loss: 0.45dB @ 800MHz
* High isolation: 40dB @ 800MHz
* High linear power handling capability
* No external DC blocking capacitors on RF lines
* Versatile 2.6-5.5V power supply
* Operating frequency: 1MHz to 3GHz Figure 1 Device Image (16 Pin 3×3×0.8mm QFN Pa

TS7246K Applications

* Private mobile radio handsets
* Public safety handsets
* Cellular infrastructure
* Small cells
* LTE relays and microcells

📥 Download Datasheet

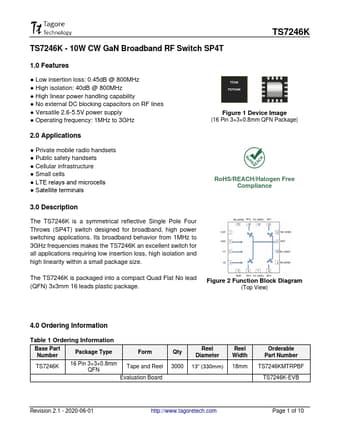

Preview of TS7246K PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TS7246K
Manufacturer
Tagore
File Size
501.67 KB
Datasheet
TS7246K-Tagore.pdf
Description
10W CW GaN Broadband RF Switch SP4T
