TSC4505 - High Voltage NPN Transistor

Name: TSC4505
SKU: TSC4505-665318

Taiwan Semiconductor Company

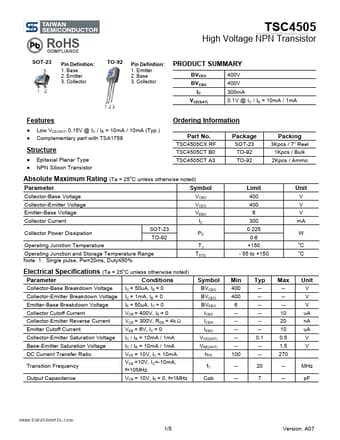

The TSC4505 by Taiwan Semiconductor Company is a High Voltage NPN Transistor. Below is the official datasheet preview.

Datasheet Details

Part number	TSC4505
Manufacturer	Taiwan Semiconductor Company
File Size	280.75 KB
Description	High Voltage NPN Transistor
Datasheet	TSC4505_TaiwanSemiconductorCompany.pdf
Additional preview pages of the TSC4505 datasheet.

only.

Low VCE(SAT) 0.15V @ IC / IB = 10mA / 10mA (Typ. ) Complementary part with TSA1759 Ordering Information Part No. TSC4505CX RF TSC4505CT B0 TSC4505CT A3 Package SOT-23 TO-92 TO-92 Packing 3Kpcs / 7” Reel 1Kpcs / Bulk 2Kpcs / Ammo Structure.
Epitaxial Planar Type NPN Silicon Transistor Absolute Maximum Rating (Ta = 25oC unless otherwise noted) Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Ope.
