TSC4505CTBO

High Voltage NPN Transistor

TSC4505CTBO Features

* Low VCE(SAT) 0.15V @ IC / IB = 10mA / 10mA (Typ.) Complementary part with TSA1759 Ordering Information Part No. TSC4505CX RF TSC4505CT B0 TSC4505CT A3 Package SOT-23 TO-92 TO-92 Packing 3Kpcs / 7” Reel 1Kpcs / Bulk 2Kpcs / Ammo Structure

* Epitaxial Planar Type NPN Silicon

TSC4505CTBO General Description

only. No license, express or implied, to any intellectual property rights is granted by this document. Except as provided in TSC’s terms and conditions of sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty, relating to sale and/or use of TSC pr.

TSC4505CTBO Datasheet (280.75 KB)

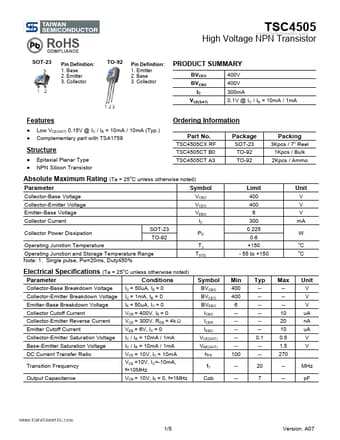

Preview of TSC4505CTBO PDF

Datasheet Details

Part number:

TSC4505CTBO

Manufacturer:

Taiwan Semiconductor Company

File Size:

280.75 KB

Description:

High voltage npn transistor.
High Voltage NPN Transistor SOT-23 Pin Definition: 1. Base 2. Emitter 3. Collector www.DataSheet4U.com TSC4505 TO-92 Pin Definition: 1. Emitter 2..
