Part number: 2A01G
Manufacturer: Taiwan Semiconductor
File Size: 192.71KB
Download: 📄 Datasheet
Description: Glass Passivated Rectifiers

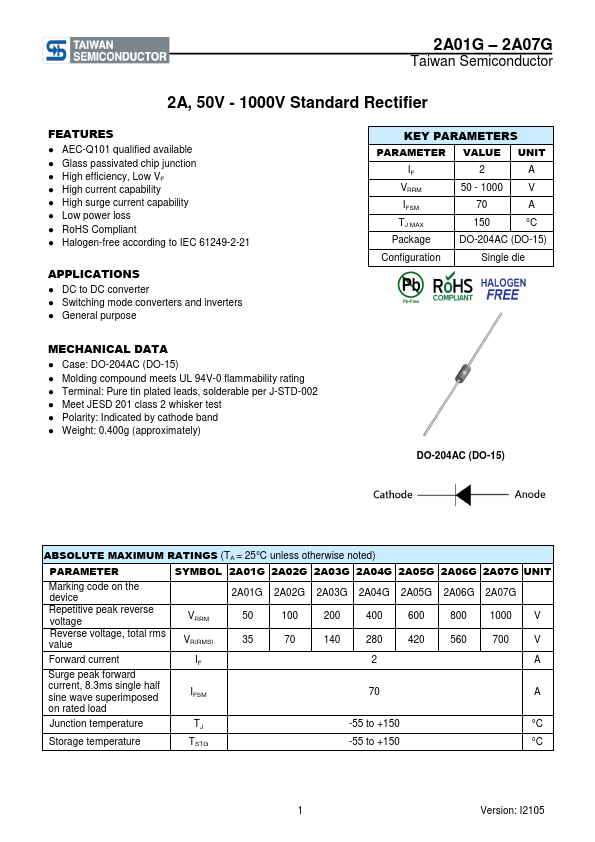

- Glass passivated chip junction - High efficiency, Low VF - High current capability - High surge current capability - Low power loss
- Compliant to RoHS Directive 2011/6.
Customers using or seling these products for use in such applications do so at their own risk and agree to fully indemn.
G Green compound AEC-Q101 qualified

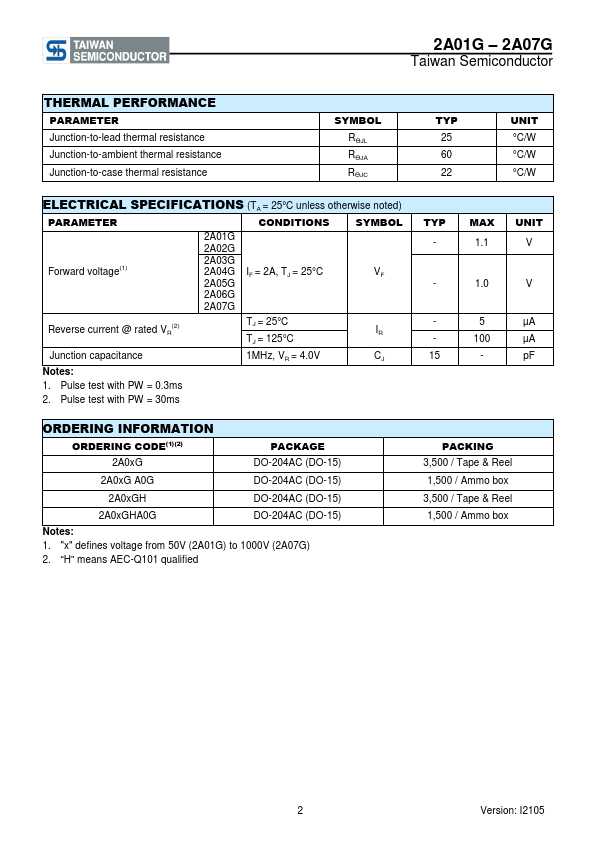

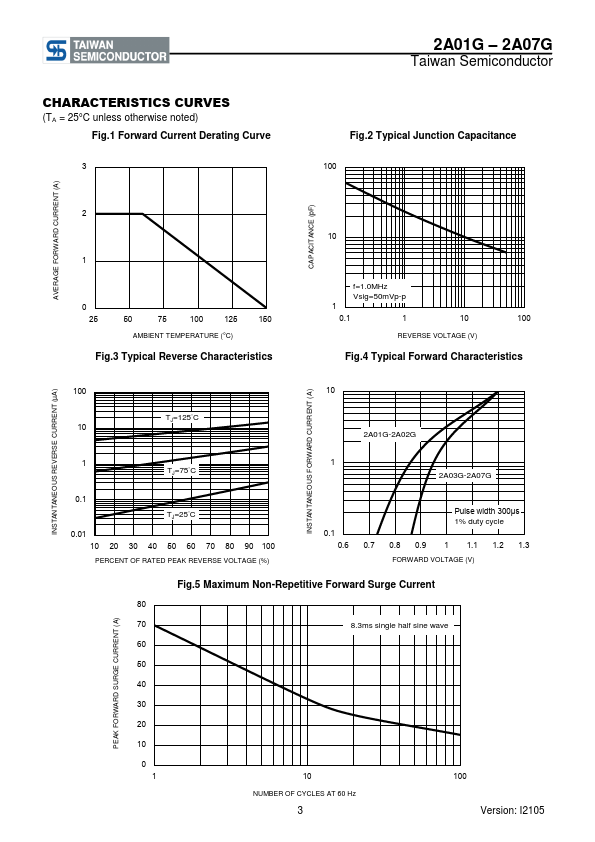

RATINGS AND CHARACTERISTICS CURVES
(TA=25℃ unless otherwise noted)
AVERAGE FORWARD CURRENT(A)
2.5 2
1.5 1
0.5 0 0
FIG.1 MAXMUM FORWARD CURRENT DERATING CURVE
50 100 AMBIENT TEMPERATURE(oC)
150
PEAK FORWARD S.
