S3M Surface Mount Rectifier

S3M Description

S3A - S3M Taiwan Semiconductor 3A, 50V - 1000V Surface Mount Rectifier .

S3M Features

* Glass passivated chip junction
* Ideal for automated placement
* Low forward voltage drop
* High current capability
* High surge current capability
* Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC
* Halogen-free according to IEC 61249-2-21 A

S3M Applications

* Switching mode power supply (SMPS)
* Adapters
* Lighting application
* Converter KEY PARAMETERS PARAMETER VALUE UNIT IF(AV) VRRM IFSM TJ MAX Package 3A 50 - 1000 V 100 A 150 °C DO-214AB (SMC) Configuration Single die MECHANICAL DATA
* Case: DO-214AB (SMC)
* Molding c

📥 Download Datasheet

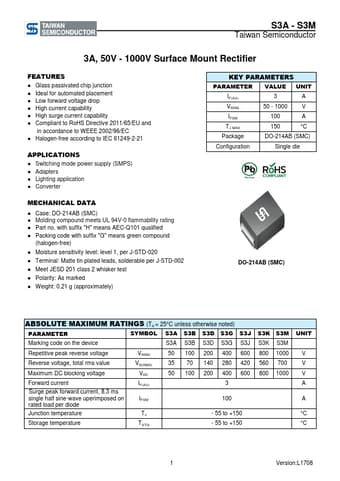

Preview of S3M PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S3M
Manufacturer
Taiwan Semiconductor
File Size
385.36 KB
Datasheet
S3M-TaiwanSemiconductor.pdf
Description
Surface Mount Rectifier
