SK52C Surface Mount Schottky Barrier Rectifier

AEC-Q101 qualified Green compound 3 Version:P1903 SK52C - SK520C Taiwan Semiconductor CHARACTERISTICS CURVES (TA = 25°C unless otherwise noted) AVERAGE FORWARD CURRENT (A) Fig.1 Forward Current Derating Curve 6 5 4 3 2 1 RESISTIVE OR INDUCTIVE LOAD 0 0 25 50 75 100 125 150 LEAD TE.

SK52C Features

* Low power loss, high efficiency

* Ideal for automated placement

* Guard ring for over-voltage protection

* High surge current capability

* Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC

* Halogen-free according to IEC 61249-2-21 APPLICATIONS

SK510C_TaiwanSemiconductor.pdf

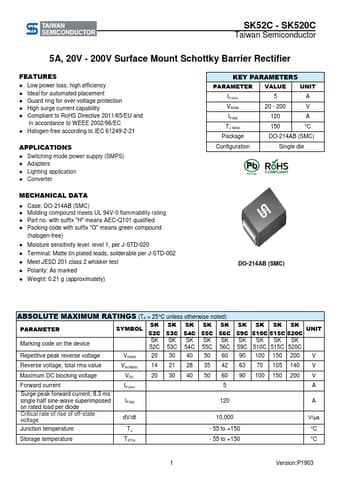

SK52C Datasheet Preview — This datasheet PDF includes multiple part numbers: SK52C, SK510C. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SK52C, SK510C

Manufacturer:

Taiwan Semiconductor

File Size:

320.81 KB

Description:

Surface mount schottky barrier rectifier.

Note:

This datasheet PDF includes multiple part numbers: SK52C, SK510C.
Please refer to the document for exact specifications by model.
