TS19371CX6

Boost (Step-up) WLED Driver

TS19371CX6 Features

* Inherently Matched LED Current

* High Efficiency: 89% Typical

* Drives Up to 9 LEDs Series @ Vin 9~15V

* Drives Up to 126 LEDs (9S14P) @ Vin 12~15V

* Drives Up to 6 (1W) LEDs Series @ Vin 12V

* Over Output Voltage Protection 30V

TS19371CX6 General Description

The TS19371 is a step-up DC/DC converter specifically designed to drive white LEDs with a constant current. The device can drive up to 126 LEDs (9S14P) from a 12V supply. The output capacitor can be as small as 4.7µF, saving space versus alternative solutions. A low 95mV feedback voltage minimizes p.

TS19371CX6 Datasheet (443.52 KB)

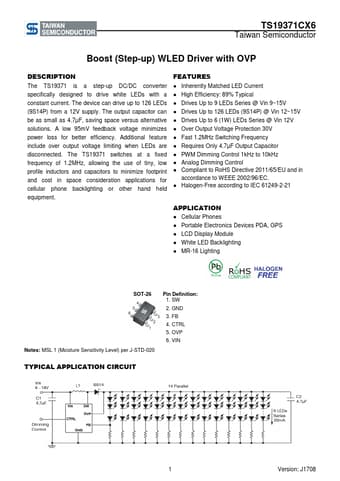

Preview of TS19371CX6 PDF

Datasheet Details

Part number:

TS19371CX6

Manufacturer:

Taiwan Semiconductor

File Size:

443.52 KB

Description:

Boost (step-up) wled driver.
