TS19377

2A Buck (Step-down) WLED Driver

TS19377 Features

* as low current consumption. Since this converter can accommodate an input voltage up to 23V, it is also suitable for the operation via an AC adapter. Features

* Input Voltage Range 3.6V~23V

* Output voltage: 0.25V~Vcc

* 2A Switch Output Current

* Duty ratio: 0%~100% PWM control

TS19377 General Description

TS19377 consists of step-down switching regulator with PWM control. These devise include a reference voltage source, oscillation circuit, error amplifier, internal PMOS and etc. TS19377 provides low-ripple power, high efficiency, and excellent transient characteristics. The PWM control circuit is ab.

TS19377 Datasheet (114.19 KB)

Rating: 1 ★ (2 votes)

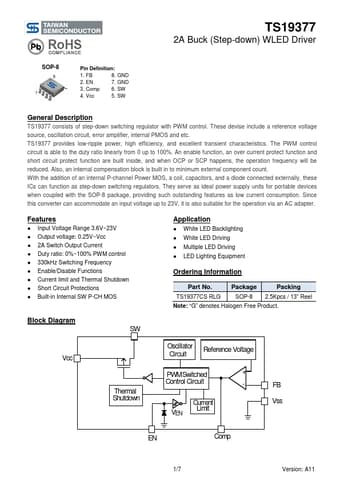

Preview of TS19377 PDF
