TS19376

1A Step-down High Brightness LED Driver

TS19376 Features

* Wide input voltage range: 8V to 32V Up to 1A output current 5000:1 Dimming Single pin on/off and brightness control using PWM Up to 1MHz switching frequency Typical 5% output current accuracy High-Side Current Sense Hysteretic Control: No Compens

TS19376 General Description

The TS19376 is a continuous conduction mode inductive step-down converter, designed for driving single or multiple series connected LED efficiently from a voltage source higher than the total LED chain voltage. The device operates from an input supply between 8V and 32V and provides an externally ad.

TS19376 Datasheet (152.48 KB)

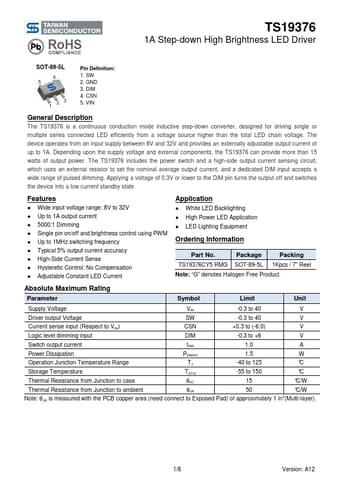

Preview of TS19376 PDF

Datasheet Details

Part number:

TS19376

Manufacturer:

Taiwan Semiconductor

File Size:

152.48 KB

Description:

1a step-down high brightness led driver.
