TCL1117-3.30CDB Datasheet - TelCom Semiconductor

TCL1117-3.30CDB, 800mA LOW DROPOUT POSITIVE REGULATORS ADJUSTABLE AND FIXED 2.85V/ 3.30V/ 5.00V

800mA LOW DROPOUT POSITIVE REGULATORS ADJUSTABLE AND FIXED 2.85V, 3.30V, 5.00V PRELIMINARY INFORMATION TCL1117 TCL1117 TCL1117-2.85 TCL1117-2.85 TCL.
The TCL1117 is a low-dropout positive voltage regulator (LDO) with 800mA output current capability.

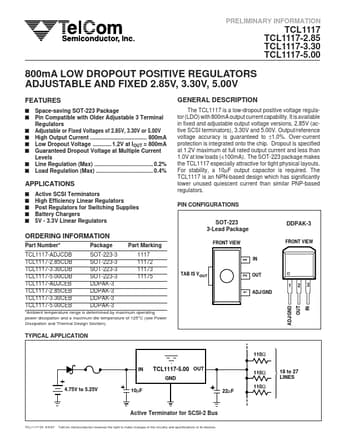

datasheet Preview Page 1 from Datasheet4u.com

TCL1117-3.30CDB_TelComSemiconductorInc.pdf

TCL1117-3.30CDB Datasheet Preview — Preview of TCL1117-3.30CDB PDF

Datasheet Details

Part number:

TCL1117-3.30CDB

Manufacturer:

TelCom Semiconductor

File Size:

121.04 KB

Description:

800mA LOW DROPOUT POSITIVE REGULATORS ADJUSTABLE AND FIXED 2.85V/ 3.30V/ 5.00V

Features

* s s s s s s s s Space-saving SOT-223 Package Pin Compatible with Older Adjustable 3 Terminal Regulators Adjustable or Fixed Voltages of 2.85V, 3.30V or 5.00V High Output Current 800mA Low Dropout Voltage 1.2V at IOUT = 800mA Guaranteed Dropout Voltage at Multiple Current Levels Line Regulation (Ma

Applications

* s s s s s Active SCSI Terminators High Efficiency Linear Regulators Post Regulators for Switching Supplies Battery Chargers 5V - 3.3V Linear Regulators DDPAK-3 FRONT VIEW ORDERING INFORMATION Part Number
* TCL1117-ADJCDB TCL1117-2.85CDB TCL1117-3.30CDB TCL1117-5.00CDB TCL1117-ADJCEB TCL1117-2.8
