TC38C46

CMOS CURRENT MODE PWM CONTROLLER

TC38C46 Features

* s s s s s s s s s s s s s s s s s s s Isolated Output Drive Low Power CMOS Construction Low Supply Current 2mA Typ. Wide Supply Voltage Operation 8V to 18V Latch-Up Immunity 500mA on Outputs Above and Below Rail Input Protection 6V High Output Drive 500mA Peak Current Mode Control Fast Rise/Fal

TC38C46 General Description

The TC38C46 is a current mode CMOS PWM control IC. It draws only 2 mA supply current, so it can be driven without a costly 50-60 Hz transformer. The output drive stage is capable of high drive currents, 300mA typical. The TC38C46 is pin compatible with earlier bipolar products so that designers can .

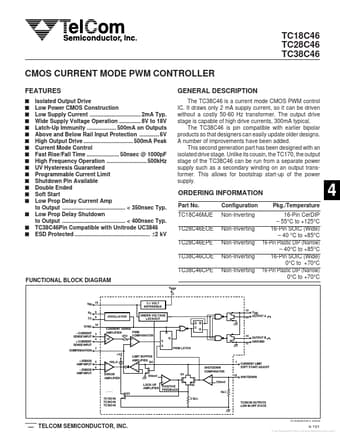

TC38C46 Datasheet (112.40 KB)

Preview of TC38C46 PDF

Datasheet Details

Part number:

TC38C46

Manufacturer:

TelCom

File Size:

112.40 KB

Description:

Cmos current mode pwm controller.
