TC3889 - 5W Packaged Self-Bias PHEMT GaAs Power FETs

TC3889 Description

TC3889 PRE.2_04/27/2005 Preliminary 5W Packaged Self-Bias PHEMT GaAs Power FETs .
18 Note:. PSCL: Output Power of Single Carrier Level.

TC3889 Features

* 5W Typical Output Power 12dB Typical Linear Power Gain at 2.0GHz High Linearity: IP3 = 47 dBm Typical High Power Added Efficiency: Nominal PAE of 35% Breakdown Voltage: BVDGO ≥ 18V Wg = 12 mm 100 % DC Tested Suitable for

📥 Download Datasheet

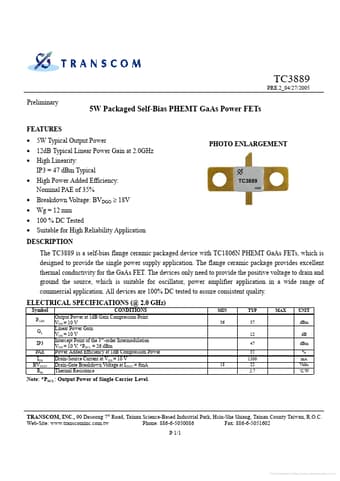

Preview of TC3889 PDF

Datasheet Details

Part number
TC3889
Manufacturer
Transcom
File Size
181.73 KB
Datasheet
TC3889_Transcom.pdf
Description
5W Packaged Self-Bias PHEMT GaAs Power FETs
