TC3873 Datasheet, Fets, Transcom

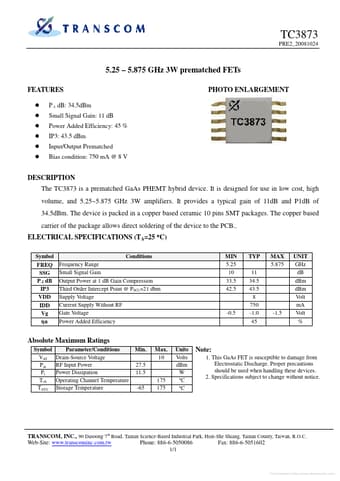

TC3873 Features

• Fets TC3873 PRE2_20081024  PHOTO ENLARGEMENT z P dB: 34.5dBm z Small Signal Gain: 11 dB z Power Added Efficiency: 45 % z IP3: 43.5 dBm z Input/Output Prematched z Bias condition:

PDF File Details

Part number:

TC3873

Manufacturer:

Transcom

File Size:

186.10kb

Download:

📄 Datasheet

Description:

5.25 - 5.875 ghz 3w prematched fets. The TC3873 is a prematched GaAs PHEMT hybrid device. It is designed for use in low cost, high volume, and 5.25~5.875 GHz 3W amplifier

TAGS

TC3873

Transcom
