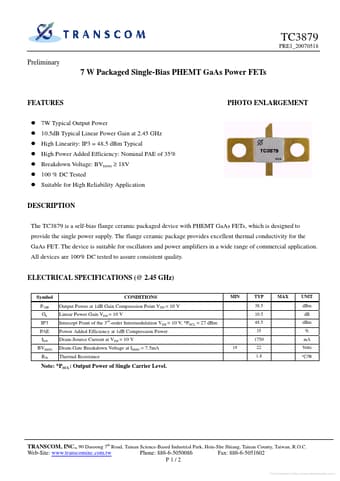

TC3879 Datasheet, Fets, Transcom

TC3879 Features

• Fets ! 7W Typical Output Power ! 10.5dB Typical Linear Power Gain at 2.45 GHz ! High Linearity: IP3 = 48.5 dBm Typical ! High Power Added Efficiency: Nominal PAE of 35% ! Breakdown Voltage:

PDF File Details

Part number:

TC3879

Manufacturer:

Transcom

File Size:

75.98kb

Download:

📄 Datasheet

Description:

7w packaged single-bias phemt gaas power fets. The TC3879 is a self-bias flange ceramic packaged device with PHEMT GaAs FETs, which is designed to provide the single power supply.
